STREAMLINED CABLE STORAGE

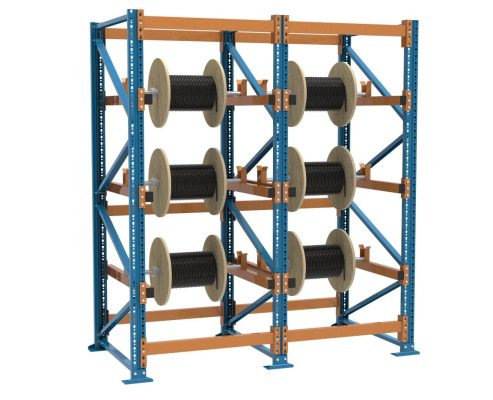

Our passive cable rack RAMA LA 01
The Ramatech RAMA LA 01 cable rack is a passive storage system and therefore the simplest type of cable drum storage. The drums can only be unwound manually – without a drive unit. The RAMA LA 01 is designed for any number of cable drums up to a maximum diameter of 1250 mm and a weight of 1000 kg. Thanks to a stand depth of 1100 mm, pallets can also be stored above the cable drum levels.
It is available in different versions. Depending on the type, it can be loaded with a forklift truck on one or both sides and stores drums at the front, rear or center of the rack. The shaft bearings are height-adjustable and can therefore be adapted to different reel sizes. In addition to the straight cable rack, there is also an angled version with a 5° incline and drums up to 500 kg. A maximum load of 3000 kg for 6 cable drums on top of each other per rack bay must not be exceeded.
All racks are tailored to your specific requirements as part of a modular system and rack bays can be combined as required
Your advantages at a glance
- All cable racks are customized using a modular construction kit
- Different grid widths and frame heights allow various hall dimensions to be covered
- Extensive range of accessories such as drum axles, flanges, backstop available

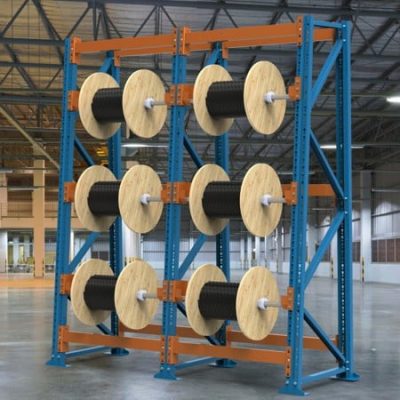

- Straight or angled storage systems with 5° inclination
-
For any number of drums up to 1200 mm diameter
-
Various hall dimensions
can be covered -
Can be customized
-
-
-
Manual storage
of drums -
-
Straight or angled design
CABLE REEL STORAGE SYSTEMS & PERIPHERAL DEVICES:
Forklift attachment for the safe transportation of cable drums and easy loading of storage systems
Active cable storage RAMA LA 02 with unwinding drive
RAMA LA 03/ LA 04 Cable reel rack with motorized platform with cable processing line
Fully automatic RAMA LA 05 “Cable Cat” cable drum storage system for optimum use of space
