WRAPPING & PACKAGING OF CABLE RINGS

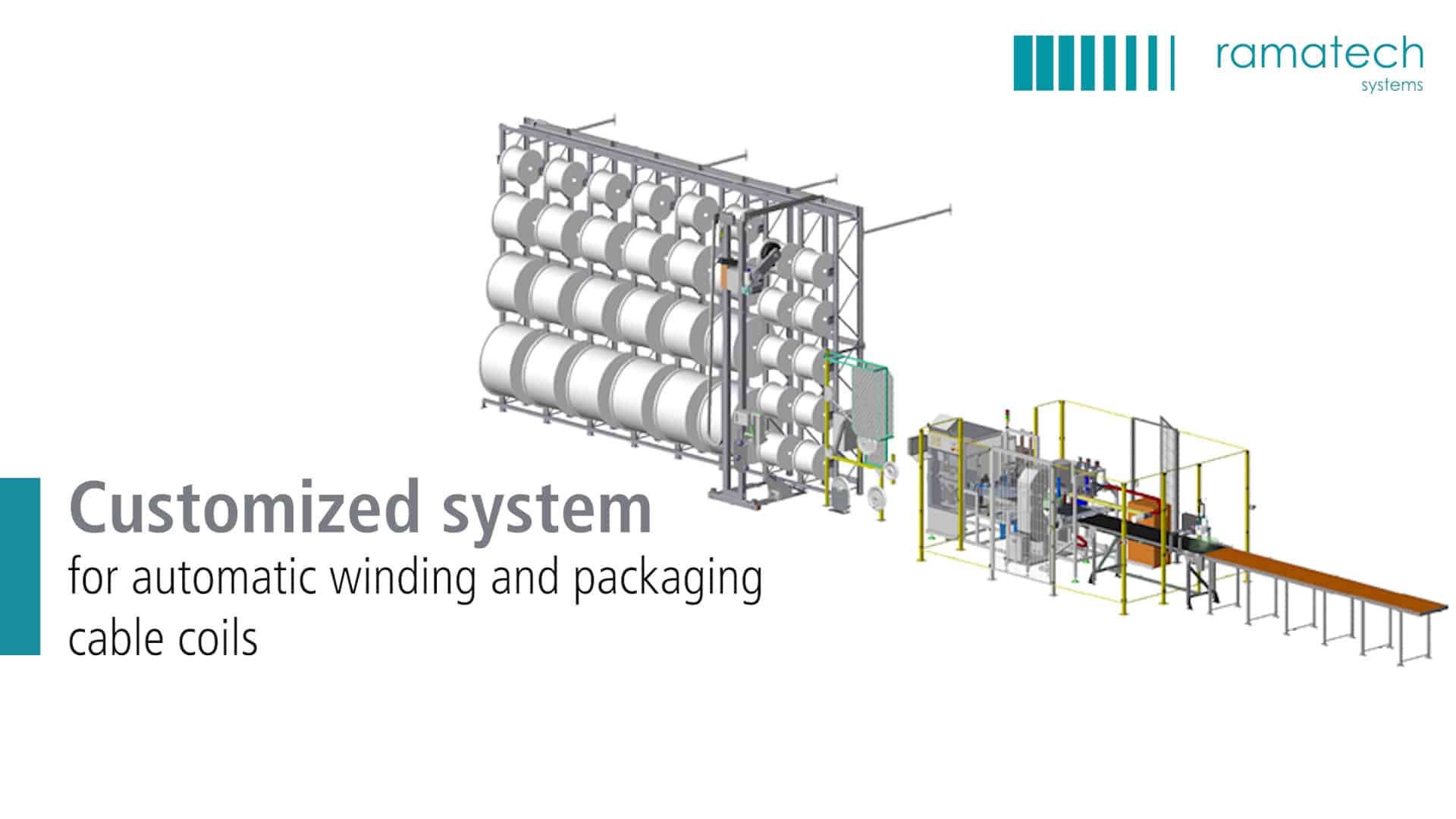

The fully automatic wrapping and packaging system from Ramatech
Ramatech not only offers systems for winding cable coils, but also has experience with packaging and therefore offers automatic cable winding and packaging systems. This means that you receive not just a single machine, but a complete, fully automatic production line with, for example, a cable reel storage system, cable ring winding machine, packaging system and conveyor system.
At the beginning, the cable drum to be processed is unwound evenly from the LA 02 cable drum storage system with drive unit and cable storage and fed to the cable cutting and ring winding machine of our automatic cable winding and packaging system. The cable is wound around the mandrels to the required length, the ring is kept in shape by a device developed by us and automatically transported to the packaging unit by a gripper arm. There, the ring is evenly wrapped in film, for example, and packaged. It is then transported away using a gripper arm and conveyor belt and the finished cable ring is labeled.
Your advantages at a glance
- Fully automatic complete winding and packaging system for cable rings
- Cable cutting machine with optical measuring unit, intuitive user interface and V-blade cutting unit, which is also suitable for Kevlar
- System specially developed by Ramatech that keeps cable rings in shape during the cutting process and transportation
- Various packaging materials such as stretch film possible
