CABLE PROCESSING DIRECTLY AT THE STORAGE LOCATION
Our semi-automatic cable reel store RAMA LA 03 and LA 04 with mobile platform

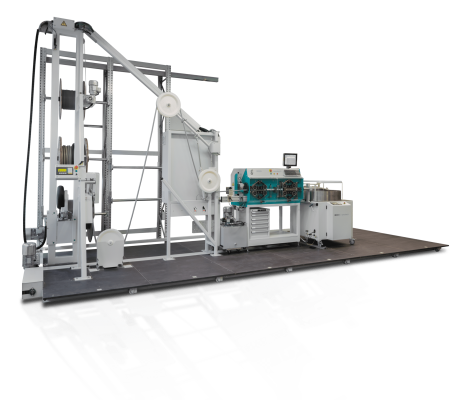

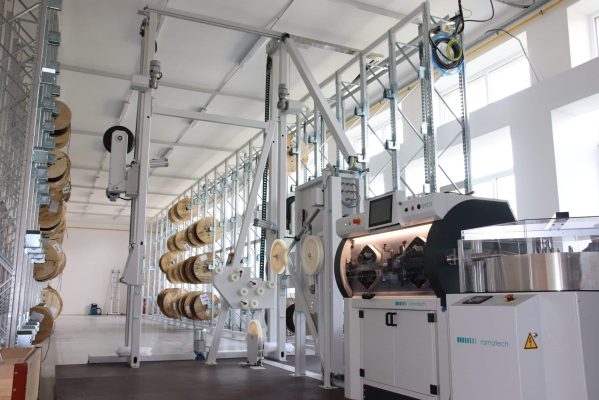

RAMA LA 03 and RAMA LA 04 are semi-automatic cable reel racks with a mobile motorized platform. There is space on this for an entire cable processing line or rewinding line consisting, for example, of cable storage, cut-to-length machine and winder or rewinding system. With this storage system, the production line comes to the cable drum and the drums do not have to be removed individually and taken to the processing line.

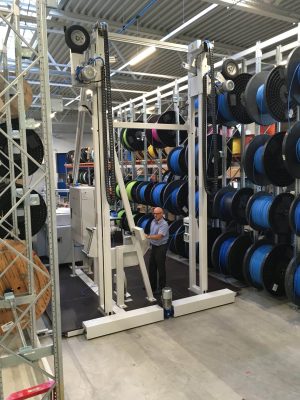

The LA 03 has a mobile platform with a reel store on one side and a drive unit, LA 04 has a platform with cable reel racks on both sides and two drive units, each serving one side of the store. LA 03 offers space for 300 reels, LA 04 space for 600 reels. All systems can store cables up to 35 mm in diameter and cable drums up to 1250 mm in diameter and weighing up to 800 kg. For heavier cable drums or other dimensions, we naturally offer individual customer solutions.

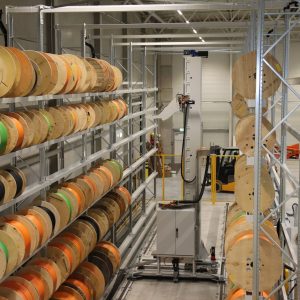

Optionally, cable drums can be approached fully automatically via the operating software of the cutting machine on the platform.
Your advantages at a glance
- Mobile, motorized platform with which the complete cable processing line is brought to the required cable drums in the cable reel rack
- You save production routes and space and achieve a higher processing speed

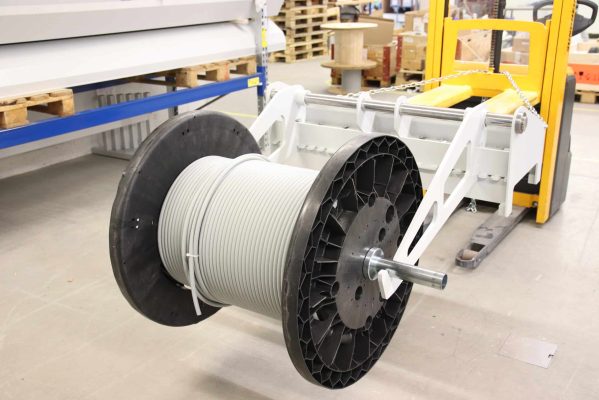

- Extensive range of accessories such as drum axles, flanges, backstop, bobbin fuse available
- All systems are designed and manufactured to customer specifications
- Including pneumatic storage arm
-
-
For up to 600 cable drums
-
With mobile, motorized platform and drive unit
-
-
-
Optimal utilization
of storage and production areas -
-
Cable production
line can be moved along the warehouse -
Can be customized
