REWINDING WITH GREAT TIME SAVINGS
The stretched winding portals from Ramatech

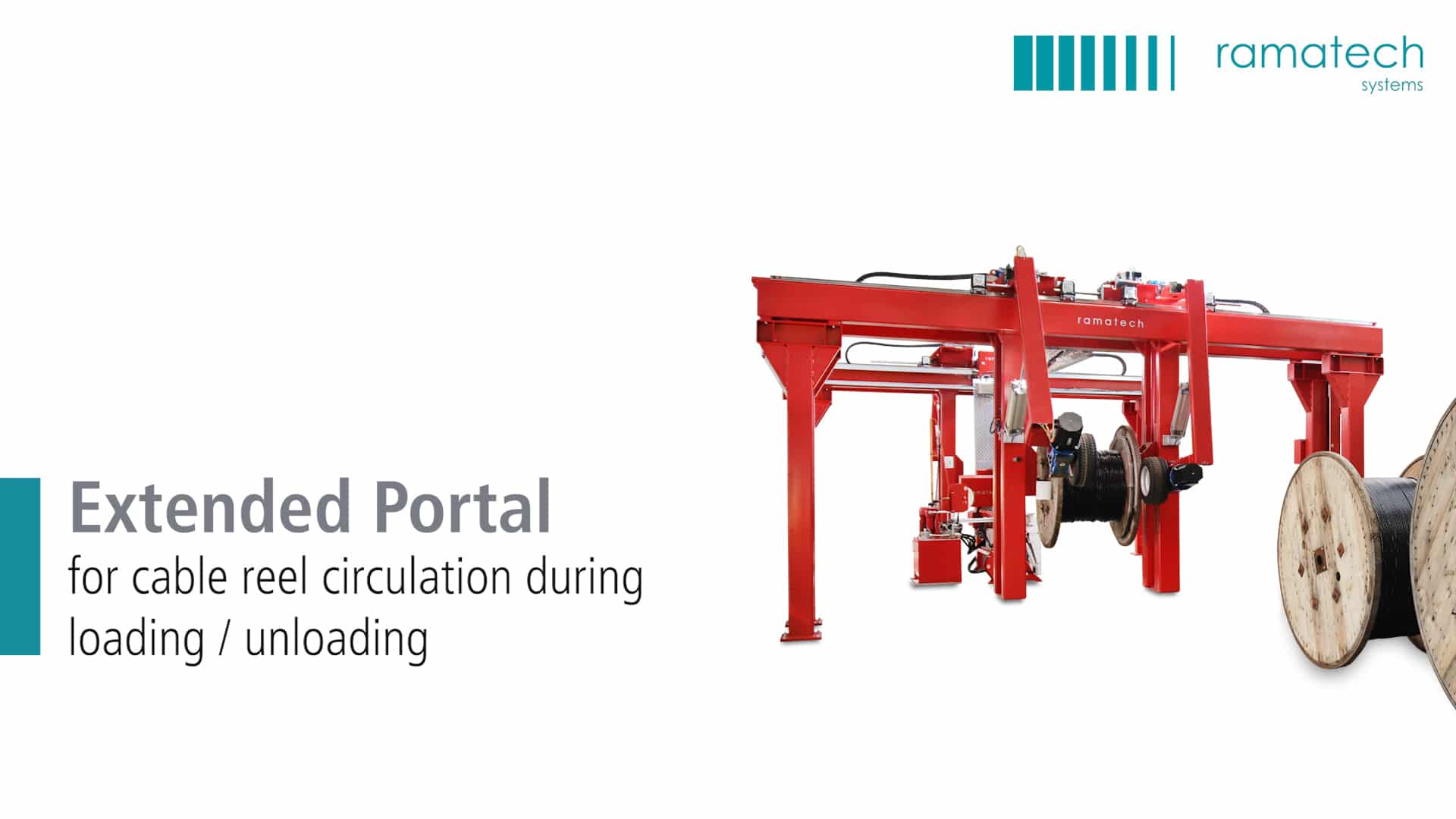

Ramatech’s stretched winding gantries are automated cable winding machines for cable drums. A winding line consists of an unwinding gantry and a winding gantry with a stationary laying unit. In contrast to the electric and hydraulic gantry series, it is not the laying unit that traverses with the cable, but the clamped target drum.
In addition, the loading and unloading process can be considerably accelerated by the lateral cross offset, as a circuit is created: In the right-hand position of the automatic cable winder, the cable drum is (automatically) loaded into the gantry, in the middle the gantry winds and on the left the drum is unloaded from the gantry again. Loading and unloading is carried out manually or automatically with our floor-supported feeding system or with a trolley.
The quills are automatically centered and clamp and lift the cable drums hydraulically. The operator can monitor the entire rewinding process with the camera.
Your advantages at a glance
- Significant time savings when feeding & loading drums thanks to freely movable lateral clamping arms
- Stretched portals cover several sizes in one portal: for example, diameters up to 700 mm -2500 mm and weights up to 8 t
- Loading and unloading with floor-supported feeding system, with trolley or by hand possible
- Automatic centering of the quills & hydraulic clamping and lifting process
- Simple and safe operation possible with control columns, touchscreens and remote control
-
Compatible with floor-mounted feed system and chassis
-
Easily operated by one person
-
Significant
time savings during loading and unloading -
-
-
Covers a wide range
of drum sizes -
-
-
Stationary
Measuring, laying and cutting unit
