FOR GREATER WINDING CAPACITY

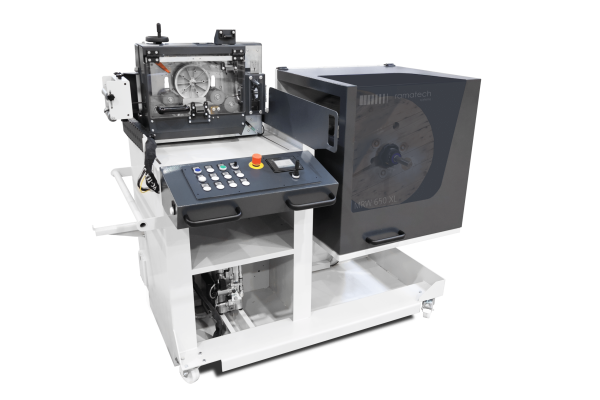

Ramatech Mobile Ring Winder MRW650 XL
Cable Ring Winding Machine – Proven technology in an XL format. This model matches the basic version in terms of performance and features, but is structurally designed for larger winding volumes. It winds cables up to 45 mm in diameter from a spool stand or reel stand into cable rings of the desired length. Rings with an outer diameter of up to 650 mm and a weight of up to 80 kg can be wound. In addition to cables, other materials of various diameters can also be processed.
Once the cable has passed through the measuring and laying unit, the end is secured to the ring attachment. After entering the desired target length and the start signal, the winding process begins automatically. The traversing laying unit, with its adjustable winding speed and turning points, ensures neat laying on our cable ring winding machine. The finished ring can be secured with cable ties and removed quickly and easily using fold-down mandrels.
Your benefits at a glance
- Portable: Can be quickly rolled to the point of use, such as a reel storage system or a reel stand
- For cables up to 45 mm in diameter and rings up to 650 mm in outer diameter
- Reels and cable rings up to 80 kg are possible
- More space for materials whilst maintaining high efficiency
- Optional with automatic laying for longer cable lengths
-
Suitable for various materials
-
Fast rewinding from
a reel rack -

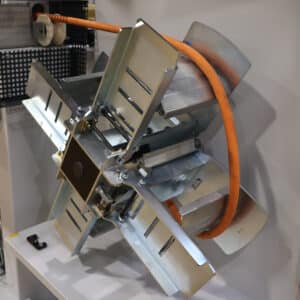

Winding attachment
for cable reels -
-
-
Ergonomic working height
-
-
Automatic cable laying
available as an option
VIDEO:
MOBILE COILING MACHINES FROM RAMATECH:
Mobile coiling machine MW 800 for winding drums up to 800 mm in diameter
Mobile coiling machine MTW 1000 and 1000 Pro for coiling drums up to 1000 mm in diameter
You can rewind directly from our cable storage systems at any time with the mobile winders
